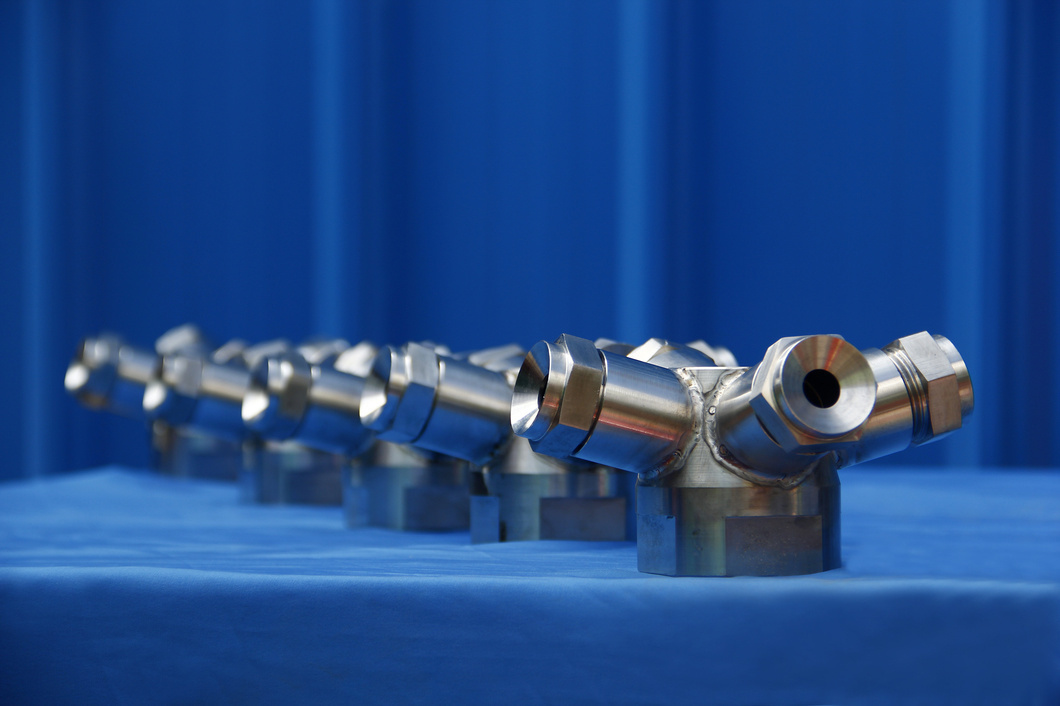

High Pressure Foam Sprinkler Quick Connect Nozzles for Urban Tunnel at Affordable

Model NO. : PT9.2-T

Installation Height : ≤5.0m

Pipe Size : G1 1/2 "

Transport Package : Wooden Package

Specification : PT9.2-T

Trademark : Ying Sui

Origin : China

Rated Working Pressure : 0.35MPa

Pressure Range : 0.2~1.0MPa

Rated Flow : 9.2L/S

Flow Coefficient : 296

Spraying Distance : 10m

Installation Spacing : ≤8.5m

Samples : US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization : Available | Customized Request

Contact Now

China High Pressure Foam sprinkler Quick Connect Nozzles for urban tunnel
Foam sprinkler is a fire extinguishing equipment used to generate and spray foam in the foam fire extinguishing system. The foam mixture is transported to the foam sprinkler through the pipeline, and then sprayed in the fire extinguishing protection area through the sprinkler to achieve the purpose of fire extinguishing.Suitable for river crossing, sea crossing, urban tunnel, rail transit tunnel.

Item	PT2.7-F	PT3.4-F	PT3.9-F	PT4.2-F	PT4.4-F	PT4.9-F	PT5.4-F	PT6.6-F	PT8.7-T	PT9.2-T
Rated working pressure MPa)	0.35
Pressure range (MPa)	0.2~1.0
Rated flow (L/s)	2.7	3.4	3.9	4.2	4.4	4.9	5.4	6.6	8.7	9.2
Flow coefficient	86	110	126	134	141	157	174	210	280	296
Spraying distance (m)	6.3	7.6	8.1	9	9.3	9.6	10	12	9.4	10
Installation spacing (m)	≤5								≤8.5
Installation height (m)	≤5.0
Pipe size	G1 1/2"
